Datasheet
The CONPASS SMART TR System is designed to obtain projection X-ray images of a person.
CONPASS SMART TR is most effective when searching for weakly contrast swallowed objects, as well as objects hidden in the natural cavities of the body.
CONPASS SMART TR is intended for use at airports and border checkpoints, in the territories of production sites and mining and processing enterprises, prisons, administrative buildings and other places where a detailed examination of the human body is required, and increased security measures are in place.
Options
- Low radiation dose (from 0.25 μSv), allowing multiple inspections of one person within a year

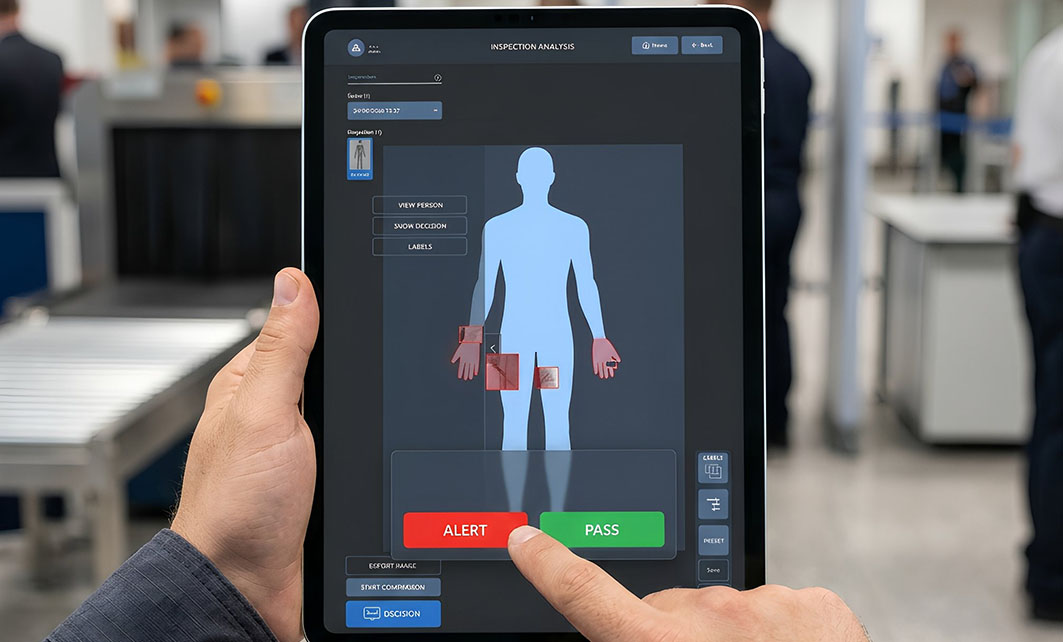

- Use of A-EYE software – artificial intelligence system for automatic detection and classification of objects located inside and on the human body
- High quality and information content of the image
- High detection capacity
- High throughput
- Integration into existing infrastructure, integration with access control systems and databases
- A wide range of image processing algorithms (tools)
- Easy storage and transfer of the received information
- Modular design for quick installation on site
CONPASS DMS
CONPASS DMS can unite X-ray scanners from distant locations into one network keeping track of the total X-ray exposure dose for each inspected person even when the person undergoes a security screening in different locations. CONPASS DMS synchronizes the information: inspected people’s accounts, scan records, and X-ray images between all connected devices. It is a set of applications used to run X-ray people screening systems. The system allows operators to inspect people and view their accounts, perform a security screening, and view the obtained X-ray images
CONPASS DMS include at least three levels of controlled access including the following:
- An “Operator” level for making scan, creating and filing reports and saving images as required.
- A “Supervisor” level for supervisory staff to update subject information, create / update operators, review images and file data and monitor all operators’ activity and data collected
- An “Administrator” level to create/update/delete user group members with different levels of access, view audit logs, view images, save images to external drives and generate reports
Read our article at linevinnovations.com about the 2023 installation in Northern Ireland.
Detected Objects:
- Explosives solid or liquid
- Weapons guns and knives
- Electronics and cell phones
- Narcotics and drugs
- Precious stones
- Ceramic and plastics
Tools:
Smart threat detection
DRUGUARD – drug detection
Key features
Superior high quality images
Smart HD images for increased penetration and resolution
Fast scan acquisition time
Only 5 second scan acquisition time
Contraband detection software
Patented advanced software aiding operators in detecting contraband
Torso area inspection
Precise screening for items on or in the body within the central area – the most important screening zone for swallowed threats
ANSI/HPS N43.17-2009
Fully compliant to ANSI standards
Modular design
Easily installed and relocated
Technical data
Scan settings
| Scan time | 5 – 15 sec. |
| Dose per scan | from 0,25 μSv |
| Wire Detectability | Up to 40 AWG |
| Minimum Throughput | 240 scans per hour |
Dimensions
| Scanner dimensions | |
|---|---|
| Width | 1850 mm |
| Height | 2350 mm |
| Length | 2260 mm |
| Weight (maximum) | 650 kg |
Power
| Power Requirements | 120 VAC / 20 A |
| Consumption | 1 kVA maximum |
Scan settings
| Scan time | 5 – 15 sec. |
| Dose per scan | from 0,25 μSv |
| Wire Detectability | Up to 40 AWG |
| Minimum Throughput | 240 scans per hour |
Dimensions
| Scanner dimensions | ||
|---|---|---|
| Width | 73″ | |
| Height | 91″ | |
| Lenght | 89″ | |
| Weight (maximum) | 1430 lbs |
Power
| Power Requirements | 120 VAC / 20 A |
| Consumption | 1 kVA maximum |
Accessories
The X-ray shielding cabin is a high-protective option for CONPASS and CONPASS SMART full body scanners designed for maximum X-ray safety in the palces where it is not possible to avoid all risks by total X-ray room alteration or where there is a temporary need to perform inpection.
The unique AI algorithms developed by LINEV Systems provide automatic detection and indication of the prohibited items and threats on or inside the human body and enhance the operator’s detection abilities by highlighting threats with colour coded boxes.
DruGuard® is unique in its algorithm processing ability to detect internally concealed narcotics. DruGuard® is designed to keep the operator engaged in the image analysis process while providing specific tools such as the probability of detection and location of detected narcotics or drugs.
