Datasheet
Using our FOBOS XR Body Scanner, you can obtain high-resolution images of bones, soft tissues and organs in less than 30 seconds. It’s ideal for obtaining quality evidence that adheres to forensic guidelines.
Its technology was developed through extensive research on digital X-ray imaging. We are proud to be a strong member of the professional community in the fields of law enforcement and forensics.
With a load capacity of up to 650 lbs, the FOBOS XR is a multifunctional imaging system that supports medical and law enforcement professionals in the process of autopsy, identification, investigation and prosecution.
The system allows for the capture of both AP and lateral scans (scans under any angles from 0 to 110° would be an additional option). With a high quality CCD sensor, it captures high resolution images with minimal noise, allowing easy diagnosis of clear structures.
The FOBOS XR is an advanced system capable of capturing high-resolution X-ray images of a body for non-invasive forensic pathology. With the ability to capture detailed and clear images, it enables pathologists to determine causes of death and to assess the damage caused by trauma. The FOBOS XR can provide detailed analysis required for research into human tissues, organs, and bones that are often beyond traditional imaging capabilities.
Embedded software
The FOBOS scanner is built on an intuitive design, easy-to-operate touch screen and advanced PACS data management software package. This system allows intuitive control of the scanner and provides advanced image editing through its PACS system.
Adjustable X-ray cart

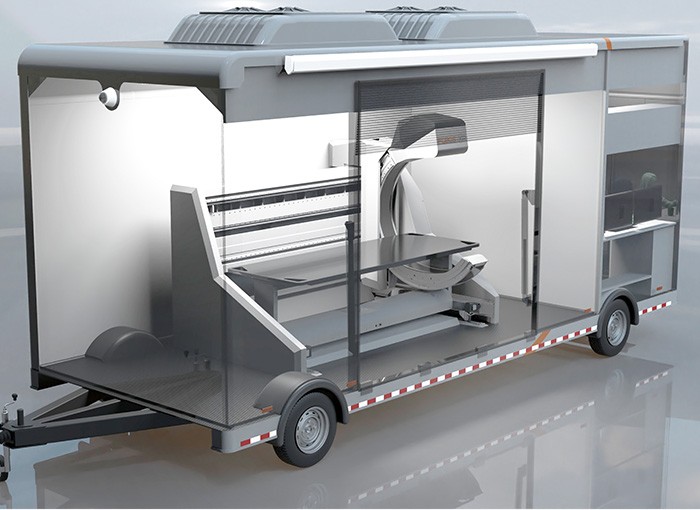

The adjustable FOBOS x-ray cart is designed with a capacity of up to 295 kg (650 lbs).” The significant width of the x-ray cart helps operators deal with larger size bodies. FOBOS XR X-ray tabletop is made of perfectly translucent carbon-fiber material with no artifacts visible on the images. The cart is equipped with 120 mm height adjustment mechanism and convenient wheels for body transportation.
Special Features:
- Use FOBOS XR for your medical, forensic and law enforcement needs to examine bodies up to 340 kg / 750 lbs. With a high penetration capability, you can use this device for examination of road traffic accidents and suicide cases, as well as homicide, drowning or other difficult situations. Penetration capability by Al – min. 12″, by H2O – 32″
- Critical components are designed to have high levels of reliability, minimizing downtime and consequently increasing ROI.
- The adjustable table provides an additional advantage for loading bodies from carts
- Design allows getting full-body images without moving or contacting the body directly
- Automatic moving parts, such as linear drive and C-arm, enable more effective image capture than conventional C-arm
Protected by US Patent: US 11,375,962 B2
Key features
Portability

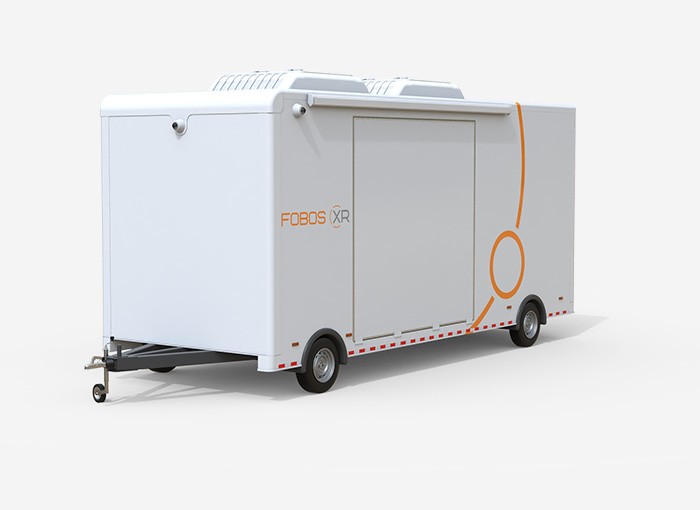

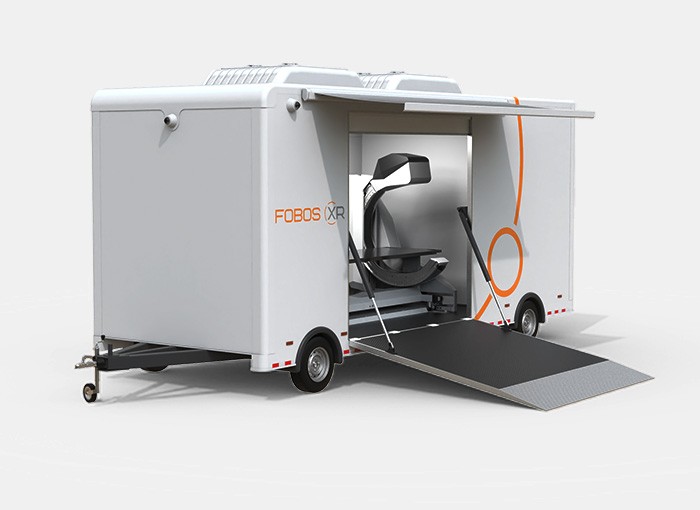

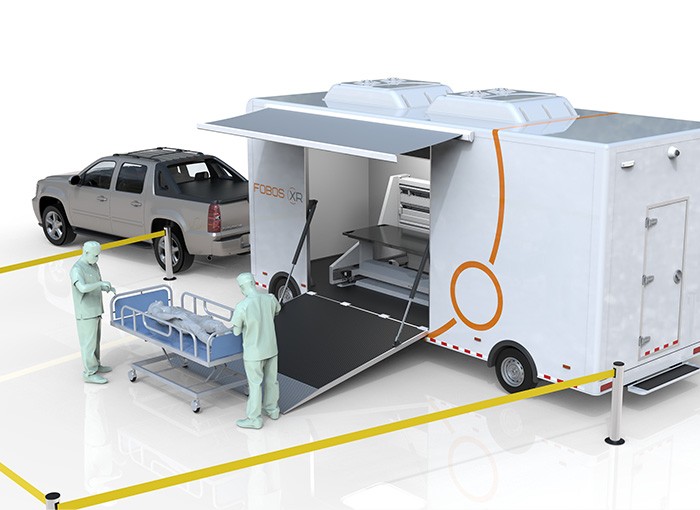

Fobos M – easily transportable to crime scenes or other locations where corpses need to be examined
Real-time imaging
Fobos M provides immediate imaging results, allowing forensic medical experts to assess and analyze evidence on the spot
Versatility
Fobos M can effectively examine and document evidence in various forensic contexts
Safety
Fobos M is designed with safety features to minimize radiation exposure

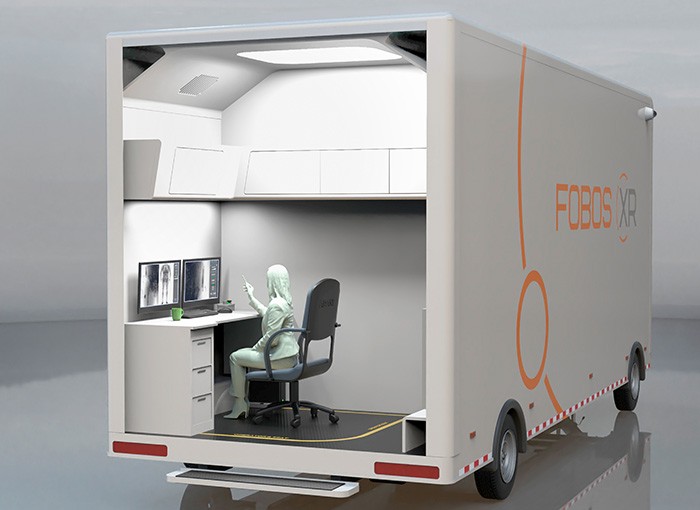

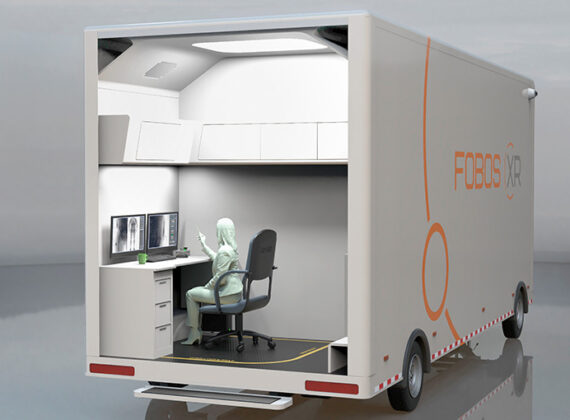

Mobile workplace
Fobos M come with integrated software that allows forensic medical experts to easily store, organize, and share the captured X-ray images to other department
Highest image resolution
The scanner provides images with a pixel size of 100 µm, with a spatial resolution of up to 5 lp/mm
Video
Technical data
Table dimensions
| Width | 2100 mm | |
| Legth | 830 mm | |
| Height | 2140 mm | |
| TABLE POWER | 24V rechargable battery | |
| TABLE CONTROL | Handheld remote | |
| BRAKE POSITION | Foot brakes on two wheels |
Overall Dimensions
| Width | 900 mm | |
| Height | 800 – 920 mm | |
| Lenght | 2320 mm | |
| Power supply | diesel generator | |
| Operator workplace | 1 inside the trailer | |
| Data transfer | wi-fi/3G/GPRS |
Table dimensions
| Width | 82.7″ | |
| Legth | 32.7″ | |
| Height | 84.3″ | |
| TABLE POWER | 24V rechargable battery | |
| TABLE CONTROL | Handheld remote | |
| BRAKE POSITION | Foot brakes on two wheels |
Overall Dimensions
| Width | 35.4″ | |
| Height | 31.5″ – 36.2″ | |
| Lenght | 91.3″ | |
| Power supply | diesel generator | |
| Operator workplace | 1 inside the trailer | |
| Data transfer | wi-fi/3G/GPRS |
Technologies
In 2019, Linev Group introduced the forensic body scanner FOBOS XR to the market, which is a unique technical solution for forensic pathologists based on patented x-ray scanning technology.
The scanner allows specialists to use the method of non-invasive autopsy and examination of the human body, including internal organs, and decide whether it is necessary to dissect the body in each case, as well as to ascertain the cause of death.
FOBOS XR is a stationary diagnostic digital radiology forensic system. The system is designed to acquire whole-body digital X-ray images of bone structures and soft tissues. The system allows to capture of both AP and lateral scans. FOBOS is a task-oriented system designed to be used in morgues and forensic centers.
