Datasheet
Using our FOBOS XR Body Scanner, you can obtain high-resolution images of bones, soft tissues and organs in less than 30 seconds. It’s ideal for obtaining quality evidence that adheres to forensic guidelines.
With high penetration capability (Al – min. 12″, by H2O – 32″), you can use this device for the examination of road traffic accidents, suicide cases, as well as homicides, drownings, or other difficult situations.
Use FOBOS XR for your medical, forensic and law enforcements which need to examine bodies up to 340 kg / 750 lbs.
Its technology was developed through extensive research on digital X-ray imaging. We are proud to be a strong member of the professional community in the fields of law enforcement and forensics.
With a load capacity of up to 350 lbs, the FOBOS XR is a multifunctional imaging system that supports medical and law enforcement professionals in the process of autopsy, identification, investigation and prosecution.
The system allows the capture of both AP and lateral scans (scans at any angle from 0 to 110° as an additional option). With a high quality CCD sensor, it captures high resolution images with minimal noise, allowing easy diagnosis of clear structures.
The FOBOS XR is an advanced system capable of capturing high-resolution X-ray images of a body for non-invasive forensic pathology examinations. With the ability to capture detailed and clear images, it enables pathologists to determine causes of death and to assess the damage caused by trauma. The FOBOS XR can provide detailed analysis that is required for research into human tissue, organs and bones that are often outside of traditional imaging capabilities.
Embedded software

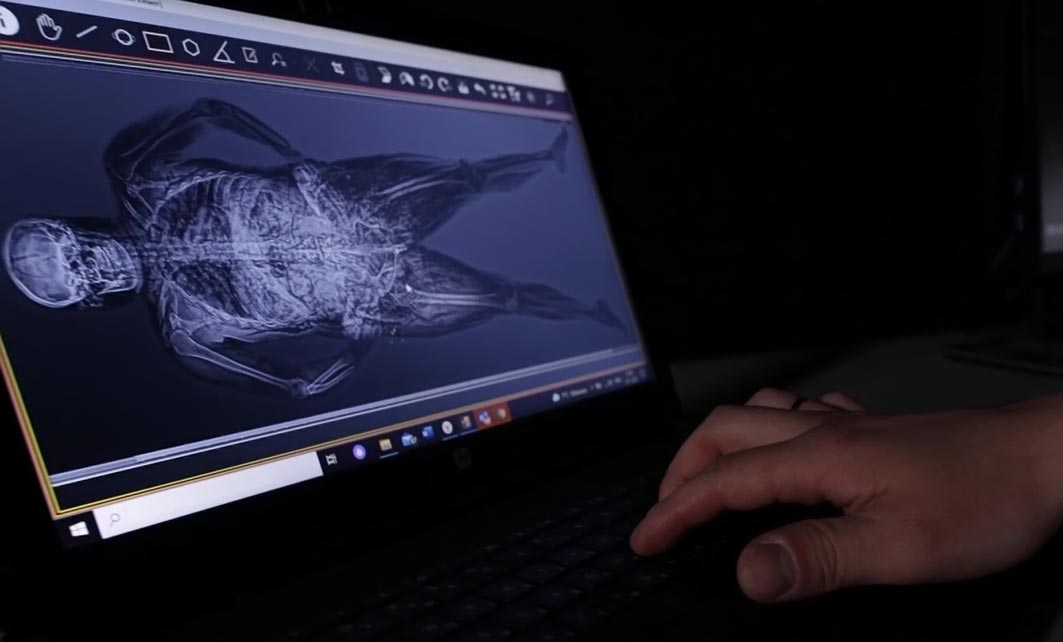

The FOBOS scanner is built on an intuitive design, easy-to-operate touch screen and advanced PACS data management software package. This system allows intuitive control of the scanner and provides advanced image editing through its PACS system.
Adjustable X-ray cart
The adjustable FOBOS x-ray cart is designed with up to 340 kg (750 lbs) capacity. The significant width of the x-ray cart helps operators deal with larger size bodies. FOBOS XR X-ray tabletop is made of perfectly translucent carbon-fiber material with no artifacts visible on the images. The cart is equipped with 120 mm height adjustment mechanism and convenient wheels for body transportation.
Special Features:
- Critical components are designed for high levels of reliability, minimizing downtime and consequently increasing ROI
- The adjustable table provides an additional advantage for loading bodies onto the table from carts
- The design allows for obtaining full-body images without the need to move or directly contact the body
- Automatic moving parts, such as the linear drive and C-arm, enable more effective image capture compared to conventional C-arm systems
Protected by US Patent: US 11,375,962 B2
Key features
Highest image resolution
The scanner provides images with a pixel size of 100 µm, with a spatial resolution of up to 5 lp/mm
Fastest scanning time
One complete scan of a body takes less than 30 seconds
Wide scanning angle
The scanning angle ranges from 0° to 110°
Full body images
Full-body AP and lateral images
Smart Filters
Function “Smart Filters” allows for improved visualization of the body, thus creating conditions for more reliable detection of injuries and anomalies
Partial scanning
Scanning the body from any angle and in an area selected by the operator
Video
Technical data
Table dimensions
| Width | 900 mm | |
| Length | 2320 mm | |
| Height | 800-920 mm | |
| TABLE POWER | 24V rechargeable battery | |
| TABLE CONTROL | Handheld remote | |
| BRAKE POSITION | Foot brakes on two wheels | |
| Scanning time | 25 sec |
Overall Dimensions
| Width | 1920 mm | |
| Height | 1963 mm | |
| Length | 3030 mm |
Table dimensions
| Width | 56.4 in | |
| Length | 91.3 in | |
| Height | 31.5-36.2 in | |
| TABLE POWER | 24V rechargeable battery | |
| TABLE CONTROL | Handheld remote | |
| BRAKE POSITION | Foot brakes on two wheels | |
| Scanning time | 25 sec |
Overall Dimensions
| Width | 75.59 in | |
| Height | 77.28 in | |
| Length | 119.29 in |
Related links
Technologies
In 2019, Linev Group introduced the forensic body scanner FOBOS XR to the market, which is a unique technical solution for forensic pathologists based on patented x-ray scanning technology.
The scanner allows specialists to use the method of non-invasive autopsy and examination of the human body, including internal organs, and decide whether it is necessary to dissect the body in each case, as well as to ascertain the cause of death.
FOBOS XR is a stationary diagnostic digital radiology forensic system. The system is designed to acquire whole-body digital X-ray images of bone structures and soft tissues. The system allows to capture of both AP and lateral scans. FOBOS is a task-oriented system designed to be used in morgues and forensic centers.
