Datasheet
The new generation of benchtop X-band electron paramagnetic resonance (EPR) spectrometer. To meet new demands SPINSCAN X brings together our more than 40 year experience in EPR and state-of-the-art digital and microwave technologies.
The SPINSCAN X Spectrometer is intended for EPR spectra registration in liquid or solid phases to detect paramagnetic species or free radicals. The main distinctive features of our EPR (ESR) Spectrometer are a compact electromagnet, a microwave bridge. The instrument’s high sensitivity and resolution can only be bettered by systems much more expensive and much larger.
The SPINSCAN X EPR (ESR) Spectrometer is provided with a fully computer controlled system including a comprehensive software package. Built-in frequency meter, magnetic field and temperature sensors, g-factor calculation and a broad dynamic range on the amplifier and the AD converter increase competitive advantages of the SPINSCAN X Spectrometer and give unique solution for scientific and technological purposes
Peculiarities:
- Cavity Q factor and MW power measurement
- Magnetic field modulation – 10 kHz – 250 kHz
- Phase detection range 0-360 degrees
- First and second harmonics detection (in phase and out of phase)
- Amplitude resolution 24 bit
- Broad signal channel dynamic range – digitization up to 140 dB in one scan
- High magnetic field resolution – up to 256 000 pts for any sweep range
- Automatic self- test of system
- 2D – experiments (intensity vs MW power, modulation amplitude, temperature, etc.)
- Interface via Ethernet
- e-Spinoza Software– comprehensive user-oriented software kit with functions for acquisition and mathematic treatment
- Nice and ergonomic design

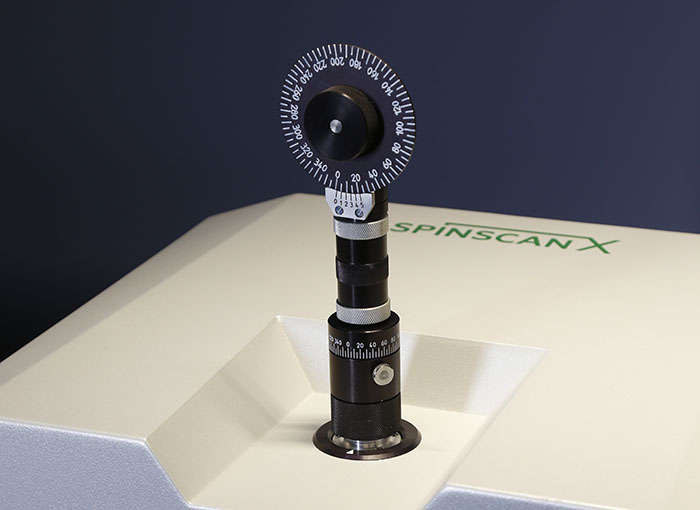

EPR Labware & sample holders
- EPR sample tubes
- Standard sample holder kit
- Capillary and Sealing kit
- LN Dewar flask & holder
- Aqua solution flat cell
- EPR Tissue cell
- EPR Flow though cell
- EPR – Electrochemical cell
- Holders for alanine dosimeters ( pellets and tap tabs)
Key features
Compact design of electromagnet and microwave bridge
Optimized magnetic field: accurate, stable and homogeneous
Built-in frequency counter and automatic g-factor measurement
Most capabilities of large spectrometers are available – good educational practice
High sensitivity and resolution – research grade epr spectrometer
Technical data
Technical details
| Sensitivity | 8×109 spins / 0,1 mT |
| Resolution | 0,005 mT |
| Maximum magnetic field | 0,7 T |
| Sweep width | 10-4—0,65T |
| Operating Frequency | X-band |
| Microwave power | 0,01—200 mW |
| Magnetic field modulation | 10—250 kHz |
| MW bridge and cavity tuning | Automatic |
| Cavity | TE102 |
| Q unloaded | 5000 |
| Amplitude resolution | 24 bit |
Dimensions
| Overall dimensions | |
|---|---|
| Width | 470 mm |
| Length | 380 mm |
| Height | 260 mm |
| Weight (maximum) | 45 kg |
|---|
Technical details
| Sensitivity | 8×109 spins / 0,1 mT |
| Resolution | 0,005 mT |
| Maximum magnetic field | 0,7 T |
| Sweep width | 10-4—0,65T |
| Operating Frequency | X-band |
| Microwave power | 0,01—200 mW |
| Magnetic field modulation | 10—250 kHz |
| MW bridge and cavity tuning | Automatic |
| Cavity | TE102 |
| Q unloaded | 5000 |
| Amplitude resolution | 24 bit |
Dimensions
| Overall dimensions | |
|---|---|
| Width | 18,5″ |
| Length | 14.9″ |
| Height | 10.2″ |
| Weight (maximum) | 99.2 lbs |
|---|
Accessories
Automatic sample changer for alanine pellets
There are 3 types to Automatic Temperature Control Systems for any possible purpose:
— TCS-01L (-170C° -+200C°)
— TCS-01B (-RT -+70C°)
— TCS-01H (+50C° -+550C°)
