DTP 320LV · Cost-effective solution for light vehicles

DTP 320LV · Cost-effective solution for light vehicles
High-throughput inspection solution that can be chosen for safe and rapid screening light vehicle and VANs at the land border crossings or roads with intensive traffic
LV Security DTP 320LV
LV Security DTP 320LV
LV Security DTP 320LV
LV Security DTP 320LV
Object
Cars
Vans
Buses
Trucks
Projection
Side
Upper
Formfactor
Mobile
Stationary

Description

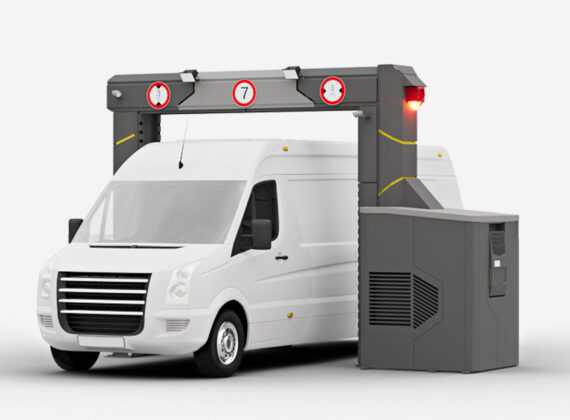

DTP 320LV is a basic low energy x-ray solution for light vehicle and VANs screening with minimal footprint and exclusion zone. It is a perfect for car inspection and identification multiple threat and contraband when high throughput is vital for the customer.

The system has easy-to-use operator controls and high throughput capacity up to 120 objects per hour, steel penetration of not less 60 mm and dual-energy technology with automatic color coding and material discrimination. DTP 320LV can be powered by AI algorithm for automatic people detection to prevent illegal human trafficking.

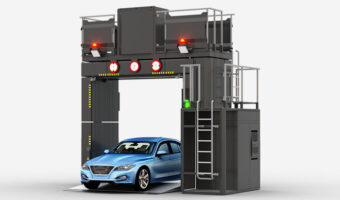

See also our DTP 320DV model if you are looking for dual-view system.

DTP 320LV is a simple and reilable X-ray inpection system, designed for non-intrusive inspection of passenger cars, vans and mini-buses. System helps to prevent illegal human trafficking, contraband and detect illegal drugs, weapons, explosives and other prohibited and dangerous objects.

DTP 320LV provides X-ray imaging in lateral projection. A dual-energy technology with automatic colour coding and material discrimination allows distinguishing organic, non-organic materials and metals, and helps to highlight all dangerous and prohibited items and objects hidden inside the vehicles.

This X-ray screening system produce such a low radiation dose that allows drivers and passengers safely stay in their cabins and vehicles during the inspection process, that, in combination with Drive-Through technology, offers increadible high throughput.

Options:

  • Weather packages
  • Automatic license plate recognition system (ANPR)
  • Module for operator
  • Infrared access limiting barriers
  • UPS system
  • Radiation monitor
  • Remote workplace for image operator
  • Diesel generator

Key features
Drive-through scanning technology

Innovative drive-through scanning technology

Color-coding

Dual energy technology with color-coding

Lateral projection

Lateral projection

High quality X-ray imaging

High quality X-ray imaging

Small footprint

Small footprint

Certifications & Conformity

ISO 14001
ISO 45001
ISO/IEC 27001
ISO 9001:2015

Technical data

Generator specifications

Scanning speed5 – 15 km/h
Throughput capacityUp to 120 vehicles per hour
Penetration (Steel)60 mm
Wire resolution (copper wire)20 AWG
Dose per scan< 0.25 μSv for one scanning

Dimensions

Dimension of inspection tunnel
Width3,0 m
Height3,0 m
Maximum size of the scanned objects
Width2,5 m
Height2,8 m
Lenght5,0 m
Operating temperaturefrom -10 °C to 50 °C

Generator specifications

Scanning speed3.1 – 9.3 mph
Throughput capacityUp to 120 vehicles per hour
Penetration (Steel)2.76″
Wire resolution (copper wire)20 AWG
Dose per scan< 0.25 μSv for one scanning

Dimensions

Dimension of inspection tunnel
Width9.8′
Height9.8′
Maximum size of the scanned objects
Width8,2′
Height9.19′
Lenght16.4′
Operating temperaturefrom -10 °C to 50 °C
